TDP
600W
Bus Width
512-bit
Shaders
24064

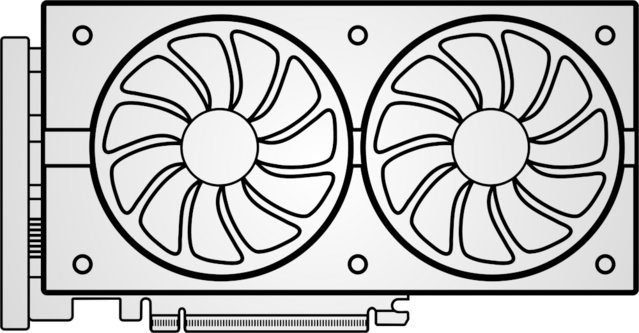

Nvidia RTX Pro 6000 Blackwell Server Edition offers a balanced combination of features.
Performance
| GPU Clock Speed i | 1590 MHz (5 others) |
| Gpu turbo i | 2617 MHz (11 others) |
| Pixel rate i | 502.5 GPixel/s (3 others) |
| Floating-Point Performance i | 126 TFLOPS |
| Texture rate i | 1968 GTexels/s (1 other) |
| Gpu memory speed i | 1750 MHz (277 others) |
| Shading units i | 24064 (2 others) |
| Texture mapping units (tmus) i | 752 (2 others) |
| Render output units (rops) i | 192 (14 others) |
Memory
| Effective memory speed i | 28000 MHz (139 others) |
| Maximum memory bandwidth i | 1600 GB/s |
| VRAM i | 96GB (2 others) |
| Gddr version i | GDDR7 (176 others) |
| Memory bus width i | 512-bit (63 others) |
| Supports ecc memory i | ✔ (379 others) |
Ports
| Has an hdmi output i | ✖ |
| Displayport outputs i | 4 (13 others) |
| Usb c ports i | 0 (325 others) |
| Dvi outputs i | 0 (443 others) |
| Mini displayport outputs i | 0 (529 others) |
General info
| Gpu architecture i | Blackwell (177 others) |
| Release date i | 10 months ago03/18/2025 (7 others) |
| Thermal design power (tdp) i | 600W (1 other) |
| Pci express (pcie) version i | 5 (195 others) |
| Semiconductor size i | 5 nm (227 others) |
| Number of transistors i | 92200 million (64 others) |
| Has air water cooling i | ✖ |
| Width i | 266.7 mm (23 others) |
Similar products
Frequently Asked Questions
What is the TFLOPS rating of the Nvidia RTX Pro 6000 Blackwell Server Edition?
At 126 TFLOPS, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #1 out of 623 — see ranking graphics card products — one of the Highest TFLOPS in this category, 292% above the category average.
What is the texture rate of the Nvidia RTX Pro 6000 Blackwell Server Edition?
At 1968 GTexels/s, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #1 out of 598 — see ranking graphics card products — one of the Highest texture rate in this category, 230% above the category average.
How many shading units does the Nvidia RTX Pro 6000 Blackwell Server Edition have?
At 24,064, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #1 out of 603 — see ranking graphics card products — one of the Highest shading units in this category, 244% above the category average.
How many TMUs does the Nvidia RTX Pro 6000 Blackwell Server Edition have?
At 752, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #1 out of 600 — see ranking graphics card products — one of the Highest TMUs in this category, 179% above the category average.
How many ROPs does the Nvidia RTX Pro 6000 Blackwell Server Edition have?
At 192, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #1 out of 600 — see ranking graphics card products — one of the Highest ROPs in this category, 107% above the category average.
How much VRAM does the Nvidia RTX Pro 6000 Blackwell Server Edition have?
At 96GB, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #1 out of 594 — see ranking graphics card products — one of the Highest VRAM in this category, 575% above the category average.
How many DisplayPort outputs does the Nvidia RTX Pro 6000 Blackwell Server Edition have?
At 4, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #1 out of 530 — see ranking graphics card products — one of the Highest DisplayPort outputs in this category, 42% above the category average.
What is the PCIe version of the Nvidia RTX Pro 6000 Blackwell Server Edition?
At 5, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #1 out of 598 — see ranking graphics card products — one of the Highest PCIe version in this category, 27% above the category average.
How many transistors does the Nvidia RTX Pro 6000 Blackwell Server Edition have?
At 92200 million, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #1 out of 591 — see ranking graphics card products — one of the Highest number of transistors in this category, 185% above the category average.
What is the pixel rate of the Nvidia RTX Pro 6000 Blackwell Server Edition?
At 502.5 GPixel/s, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #2 out of 612 — see ranking graphics card products — one of the Highest pixel rate in this category, 152% above the category average.
What is the TDP of the Nvidia RTX Pro 6000 Blackwell Server Edition?
At 600W, the Nvidia RTX Pro 6000 Blackwell Server Edition ranks #3 out of 598 — see ranking graphics card products — one of the Highest TDP in this category, 128% above the category average.
What is the effective memory speed of the Nvidia RTX Pro 6000 Blackwell Server Edition?
At 28000 MHz, the Nvidia RTX Pro 6000 Blackwell Server Edition is 54% above the category average for effective memory speed, ranking #30 out of 593 — see ranking graphics card products.
How does it compare?
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's VRAM compare to similar graphics cardss?

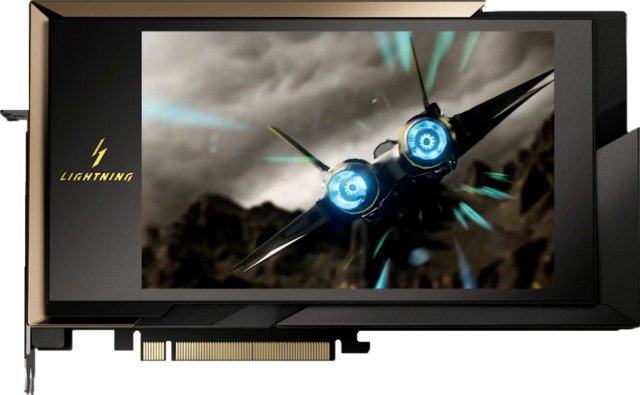

At 96GB, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the MSI GeFoce RTX 5090 Lightning Z (32GB) by 67%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's TDP compare to similar graphics cardss?
At 600W, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the Nvidia RTX Pro 6000 Blackwell Max-Q Workstation Edition (300W) by 50%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's TFLOPS compare to similar graphics cardss?

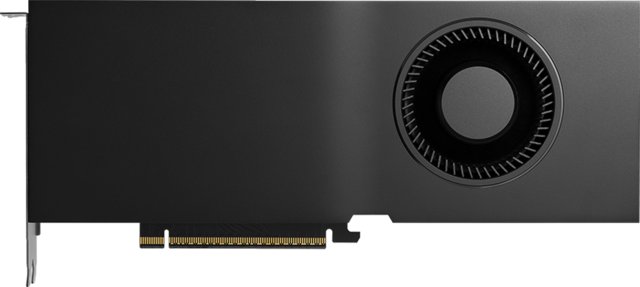

At 126 TFLOPS, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the Nvidia RTX Pro 5000 Blackwell 72GB (66.94 TFLOPS) by 47%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's texture rate compare to similar graphics cardss?
At 1968 GTexels/s, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the Nvidia RTX Pro 5000 Blackwell 72GB (1045.9 GTexels/s) by 47%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's shading units compare to similar graphics cardss?
At 24,064, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the Nvidia RTX Pro 5000 Blackwell 72GB (14,080) by 41%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's TMUs compare to similar graphics cardss?
At 752, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the Nvidia RTX Pro 5000 Blackwell 72GB (440) by 41%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's DisplayPort outputs compare to similar graphics cardss?
At 4, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the MSI GeFoce RTX 5090 Lightning Z (3) by 25%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's gpu clock speed compare to similar graphics cardss?
At 1590 MHz, the Nvidia RTX Pro 6000 Blackwell Server Edition trails the MSI GeFoce RTX 5090 Lightning Z (2017 MHz) by 21%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's pixel rate compare to similar graphics cardss?
At 502.5 GPixel/s, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the Nvidia RTX Pro 5000 Blackwell 72GB (418.4 GPixel/s) by 17%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's gpu turbo compare to similar graphics cardss?
At 2617 MHz, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the Nvidia RTX Pro 6000 Blackwell Max-Q Workstation Edition (2288 MHz) by 13%.
How does the Nvidia RTX Pro 6000 Blackwell Server Edition's ROPs compare to similar graphics cardss?
At 192, the Nvidia RTX Pro 6000 Blackwell Server Edition leads the Nvidia RTX Pro 5000 Blackwell 72GB (176) by 8%.
