TDP
55W
General info
| Type i | Laptop (272 others) |
| Has Integrated Graphics i | ✔ (785 others) |
| Release date i | 3 years ago01/04/2023 (19 others) |
| Thermal design power (tdp) i | 55W (46 others) |
| Semiconductor size i | 6 nm (23 others) |
| Cpu temperature i | 100 °C (504 others) |
| Pci express (pcie) version i | 5 (244 others) |
Performance
| CPU Speed i | 8 x 3.6 GHz (15 others) |
| Cpu threads i | 16 threads (173 others) |
| Turbo clock speed i | 5.1GHz (54 others) |
| Has An Unlocked Multiplier i | ✔ (256 others) |
| L2 Cache i | 8 MB (59 others) |
| L3 Cache i | 32 MB (34 others) |
| L1 Cache i | 512 KB (100 others) |
| L2 Core i | 1 MB/core (163 others) |
| L3 Core i | 4 MB/core (50 others) |
Benchmarks
| Passmark result i | 32581 |
| Passmark result (single) i | 3947 |
| Geekbench 6 Result (multi) i | 12830 |
| Geekbench 6 Result (single) i | 2630 (1 other) |
Integrated graphics
| GPU Clock Speed i | 1500 MHz (19 others) |
| Gpu name i | Radeon 610M (12 others) |
| Gpu turbo i | 2200 MHz (51 others) |
| Gpu execution units i | 2 (28 others) |
| Directx version i | DirectX 12 (574 others) |
| Supported displays i | 4 (361 others) |
| Opengl version i | 4.6 (334 others) |
| Opencl version i | 2 (96 others) |
| Texture mapping units (tmus) i | 8 (18 others) |
Memory
| Ram speed (max) i | 5200 MHz (90 others) |
| Ddr memory version i | 5 (466 others) |
| Memory channels i | 2 (845 others) |
| Maximum memory amount i | 64GB (217 others) |
| Supports ecc memory i | ✖ |
Similar products
Frequently Asked Questions
What is the PCIe version of the AMD Ryzen 7 7745HX?
At 5, the AMD Ryzen 7 7745HX ranks #1 out of 919 — see ranking cpu products — one of the Highest PCIe version in this category, 32% above the category average.
What is the DDR memory version of the AMD Ryzen 7 7745HX?
At 5, the AMD Ryzen 7 7745HX ranks #1 out of 952 — see ranking cpu products — one of the Highest DDR memory version in this category, 14% above the category average.
What is the supported displays of the AMD Ryzen 7 7745HX?
At 4, the AMD Ryzen 7 7745HX is 14% above the category average for supported displays, ranking #5 out of 686 — see ranking cpu products.
What is the gpu clock speed of the AMD Ryzen 7 7745HX?
At 1500 MHz, the AMD Ryzen 7 7745HX is 196% above the category average for gpu clock speed, ranking #16 out of 626 — see ranking cpu products.
What is the gpu execution units of the AMD Ryzen 7 7745HX?
At 2, the AMD Ryzen 7 7745HX is 94% below the category average for gpu execution units, ranking #472 out of 500 — see ranking cpu products.
How many TMUs does the AMD Ryzen 7 7745HX have?
At 8, the AMD Ryzen 7 7745HX is 74% below the category average for TMUs, ranking #385 out of 412 — see ranking cpu products.
What is the l2 core of the AMD Ryzen 7 7745HX?
At 1 MB/core, the AMD Ryzen 7 7745HX is 69% above the category average for l2 core, ranking #51 out of 665 — see ranking cpu products.
What is the multi-core Geekbench 6 score of the AMD Ryzen 7 7745HX?
At 12,830, the AMD Ryzen 7 7745HX is 67% above the category average for multi-core Geekbench 6 score, ranking #97 out of 576 — see ranking cpu products.
What is the l3 core of the AMD Ryzen 7 7745HX?
At 4 MB/core, the AMD Ryzen 7 7745HX is 60% above the category average for l3 core, ranking #60 out of 643 — see ranking cpu products.
How much memory does the AMD Ryzen 7 7745HX support?
At 64GB, the AMD Ryzen 7 7745HX is 58% below the category average for maximum memory, ranking #530 out of 904 — see ranking cpu products.
What is the PassMark result of the AMD Ryzen 7 7745HX?
At 32,581, the AMD Ryzen 7 7745HX is 58% above the category average for PassMark result, ranking #132 out of 855 — see ranking cpu products.
What is the single-core Geekbench 6 score of the AMD Ryzen 7 7745HX?
At 2630, the AMD Ryzen 7 7745HX is 52% above the category average for single-core Geekbench 6 score, ranking #78 out of 576 — see ranking cpu products.
How does it compare?
How does the AMD Ryzen 7 7745HX's TMUs compare to similar CPUss?

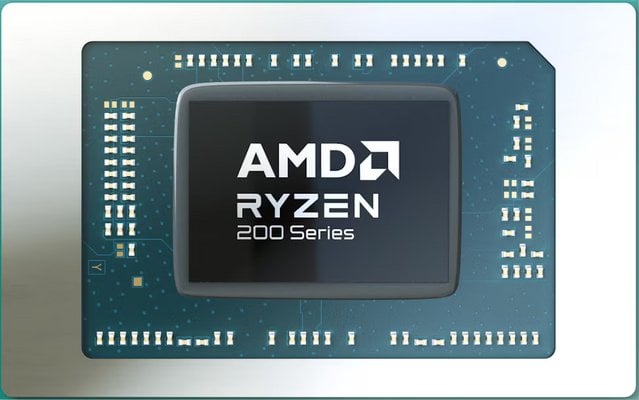

At 8, the AMD Ryzen 7 7745HX trails the AMD Ryzen 7 260 (48) by 83%.
How does the AMD Ryzen 7 7745HX's gpu execution units compare to similar CPUss?
At 2, the AMD Ryzen 7 7745HX trails the AMD Ryzen 7 7840HS (12) by 83%.
How does the AMD Ryzen 7 7745HX's maximum memory compare to similar CPUss?
At 64GB, the AMD Ryzen 7 7745HX trails the AMD Ryzen 7 260 (256GB) by 75%.
How does the AMD Ryzen 7 7745HX's TDP compare to similar CPUss?
At 55W, the AMD Ryzen 7 7745HX leads the Intel Core Ultra X9 388H (25W) by 55%.
How does the AMD Ryzen 7 7745HX's semiconductor size compare to similar CPUss?
At 6 nm, the AMD Ryzen 7 7745HX leads the Intel Core Ultra X9 388H (3 nm) by 50%.
How does the AMD Ryzen 7 7745HX's L3 cache compare to similar CPUss?
At 32 MB, the AMD Ryzen 7 7745HX leads the AMD Ryzen 7 260 (16 MB) by 50%.
How does the AMD Ryzen 7 7745HX's memory channels compare to similar CPUss?
At 2, the AMD Ryzen 7 7745HX trails the Apple M4 Max (16-core CPU / 40-core GPU) (4) by 50%.
How does the AMD Ryzen 7 7745HX's l3 core compare to similar CPUss?
At 4 MB/core, the AMD Ryzen 7 7745HX leads the AMD Ryzen 7 260 (2 MB/core) by 50%.
How does the AMD Ryzen 7 7745HX's gpu clock speed compare to similar CPUss?
At 1500 MHz, the AMD Ryzen 7 7745HX leads the AMD Ryzen 7 260 (800 MHz) by 47%.
How does the AMD Ryzen 7 7745HX's RAM speed compare to similar CPUss?
At 5200 MHz, the AMD Ryzen 7 7745HX trails the Intel Core Ultra X9 388H (9600 MHz) by 46%.
How does the AMD Ryzen 7 7745HX's supported displays compare to similar CPUss?
At 4, the AMD Ryzen 7 7745HX leads the Apple M4 Max (16-core CPU / 40-core GPU) (3) by 25%.
How does the AMD Ryzen 7 7745HX's gpu turbo compare to similar CPUss?
At 2200 MHz, the AMD Ryzen 7 7745HX trails the AMD Ryzen 7 8700G (2900 MHz) by 24%.
